Inheritance – Always good?

Hello, it’s the lead programmer of Headless Hobo with another post. A little delayed, but here it is.

This time I’ll talk about our old combat system in our game Molith.

Figure 1: Simplified overview of the combat system

When you damage someone in our system, you damage through lots of different damage types. As we can see above. There are two main damage types. Base, and the elemental types.

Base always damages the enemy defense. Elemental types only damage, if the defense has a weakness for that elemental type.

In our example above we can see that there also is STR (for strength), which just add extra damage to base.

When the damage reaches the defense, the defense checks if anything goes through and if it does, it sends the damage to the life which then subtracts it.

Figure 2:Overview of the combat system with modifiers

What is a modifier, you might ask? Well it’s anything, that needs to modify the damage. Its most common use is in the different attributes, for our equipment. E.g. we have a broken sword attribute, which modifies the swords damage, by subtracting damage.

In the example above we can see that first the player attack sends the damage to the modifier manager, which then sends it to all its modifiers. Then after the damage has been modified, its sent back to player attack, where the damage is used (as seen in previous example).

As we can see it’s no longer “Damage” its “Copy of damage” and why is this?

Well it’s because that when we modify the damage each frame, we need to have something that is unmodified, else we would keep modifying something, that is already modified. E.g. If we had a modifier, that adds 2 damage each time, then if we don’t make it a copy, the damage would grow by 2 each time it runs. Therefor we need to save the unmodified damage and modify it each frame.

We went to work on getting the system implemented.

Figure 3: Overview of our first idea of the modifier system

So basically everything inherits from the modifier class. What does inherit mean?

Well, it means that if a class inherits from another class, then it gets everything from that class, and can do anything that class can. It has a Is a relationship. Let’s say we have a dog and a cat class, which both inherits from the animal class.

Every animal eats, drinks, mates and so on. Without inheritance, we would have to write the dog class and cat class from the ground up, but with inheritance we only have to write, what they do differently and can save a lot of code by that. The downside to inheritance is, that you lose a lot of flexibility. So if there a day existed an animal, that didn’t eat, then since, we assumed that all animals eat, then we either have to write this new animal class from the ground up, or make a hacky solution.

Using inheritance removed a lot of code that would else be duplicated in the modifiers classes, but also removed a lot of flexibility. We ran into a problem, when we wanted to implement a new change to the system and because we could see that without reworking the code, we would have to implement a hacky solution, we decided to rework the system and make it more flexsible.

Figure 4: Overview of our current combat system.

So previously which class the modifiers inherited from, decided which modifier it was. This was the biggest problem and what changed in the new system. As we can see each modifier has a modifier type, which is now what identifies the different modifiers. Because of this, we could make our modifier class into an interface. What is an interface?

It’s when you need all classes that inherits from it, to do something, but not specify how it does it. E.g. all animals eat differently, so if the animal class was an interface, you would make the interface say that the class should eat, but not how it should eat.

With this new system, we added our feature and in the future it would be easier to make a change. So lessons learned is, be careful about using inheritance, it's good at removing duplication, but it can make it hard to change things, if you don’t use it right. Remember composition over inheritance.

As always I hope you have enjoyed the post and learned something you can use.

Philip Ullersted – Lead programmer at Headless Hobo

Loading stats in our game

In many games, there are different stats, that need a lot of tinkering and balancing before its in a good state. Weapons can easily be over powered or can be under powered and end up not being used.
Therefor it needs to be easy to change and it needs to be easy to understand what everything is. To contain data, there are a few different methods. You can use a database or save to a file(using a data type). Pro and cons of them both comes here.
Database
Pros
- Its easy to withdraw data and search for data.
- There is an existing GUI for it.
- Has good support for many entries, without it getting messy.
Cons
- Have to use a GUI, can't edit the file directly.
- Most existing GUI's don't deliver a good enough editing and reading experience.
- Its a hassle to work with(we think).
File
Pros
- Its easy to edit directly from the file.
- We can develop a GUI easier.
Cons
- Have no existing GUI's. We have to write our own, or edit directly in the files.
- Can quickly get messy, if you edit directly in the file, and there are lots of entries.

We wanted to make a custom GUI, that was a breeze to use. Saving via a file, was the best way to do that.
There are also multiple options for how you can save. We considered xml and json. We went with xml, since we liked its syntax better, which is the main difference between all the different data types. There are small other differences, but what really matters is the syntax.

We were a little lost as how you should import the values from the xml into the game. We had no experience with importing xml. Because of this we chose a sub optimal solution. We had to rewrite it, when we started designing our custom GUI. Its was not flexible enough and there was duplication all over it.

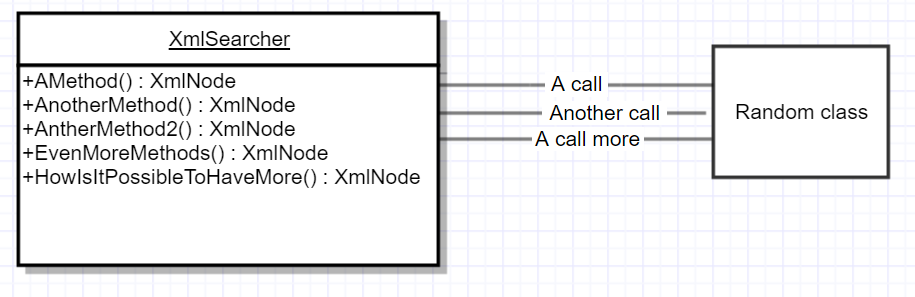

The way it worked was that we had a class(XmlSearcher), that did all the work(too much) and then every time, we needed something from the xml file, we called it and it usually returned a XmlNode. Then you called it again with the XmlNode and asked it for something in regarding that XmlNode.

With our previous experience with importing xml, we took to designing a new and better design.
The new design is much simpler and works much better.

Our current system

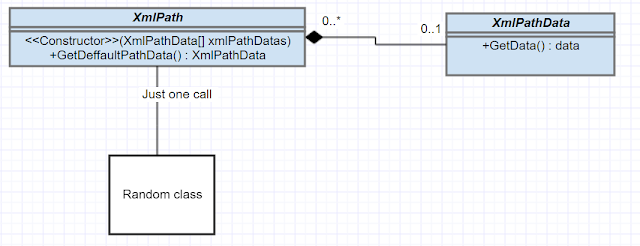

When you want something in the xml file, you call the class XmlPath's constructor with parameters describing your path to your desired node. Then you can get all the data you want via the XmlPathData, which XmlPath returns. The previous XmlSeacher class, still exists but does far less and is used by XmlPathData and XmlPath.

Its now much easier too work with system and we can design our GUI easier. We hope some of this was useful and makes it easier for you to work with importing xml.

That was all for this weeks blog post! Return next Tuesday for another.
